High speed digital video cameras for slow motion analysis


image description
often used frame rates 1000 to 6,000
image description
max resolution at fps 1280 x 800 @ 4,000 fps
image description
max fps 85,000

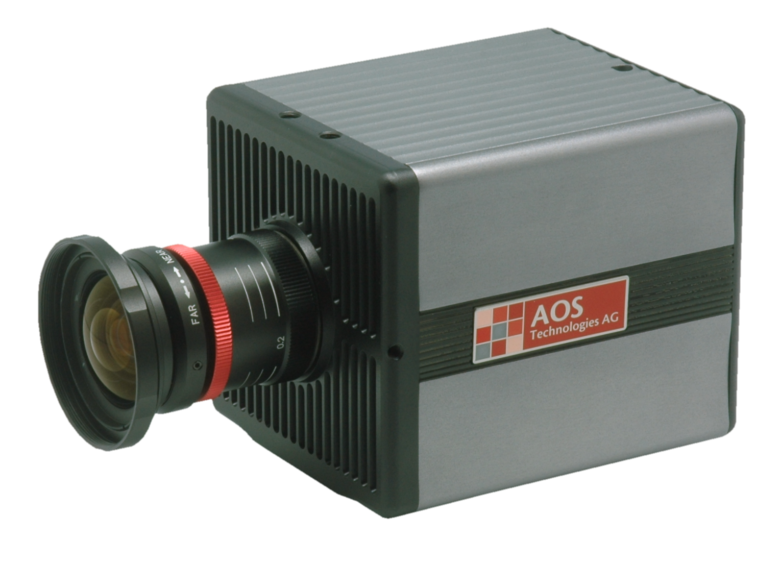

The M-PRI is a 1MPixel high resolution portable high speed camera. It is low in cost and has large memory options up to 128GB.  The M-PRI combines good light sensitivity and resolutions in a small package.  When you need a rugged, small high speed camera with an impressive cost/ performance ratio; the M-PRI is a definite candidate.

  • Sample Record Rates: 1280 x 800 @ 4,000 fps; 1280 x 512 @ 6,370; 1280 x 256 @ 12,190
  • Max Record Duration: Time typically measured in Seconds. Frame rate and resolution dependent.
  • Light Sensitivity: ISO 10,000 (Mono)
  • Warranty: 1 Year
  • Minimum Shutter: 2 μs (microsecond)
  • Special Features: Large Memory Options
  • Dynamic Range: 10 bit
  • Budgetary Range: See "Camera Guideline" button in top right of this page
Sensor Options: Color or Mono
Onboard Memory Options: 4GB, 8GB, 16GB, 32GB, 64GB, or 128GB (for actual record time, see “Spec Sheet” Link)
Models: Part of the AOS M Series (Other models coming soon). See Camera Guideline for comparison of models.
Other Options Include: Analysis Software
