High speed digital video cameras for slow motion analysis

AOS Micro-G1

image description
often used frame rates 250 to 1,000
image description
max resolution at fps 1920 x 1080 @ 250 fps
image description
max fps 4,500

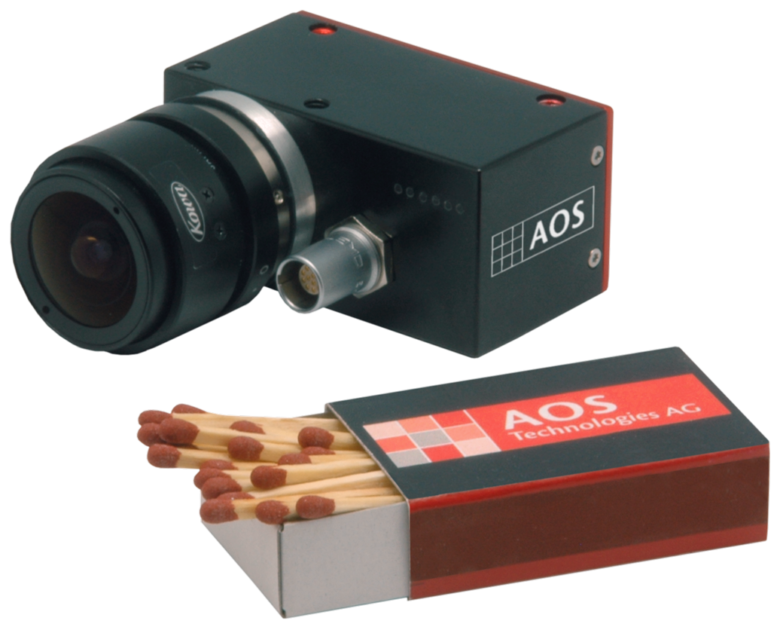

With a size of approximately 1” x 1” x 2”, the Micro G1 is the ideal candidate to for small spaces. Cable connections on the front offer a small footprint and allow easy manipulation in tight spaces. This camera delivers crisp clear images in high g, harsh environments for a low price. The Micro G1 is another quality engineered and solidly built camera from AOS.

  • Sample Record Rates: 1920 x 1080 @ 250 fps; 1280 x 720 @ 580; 512 x 512 @ 1400
  • Max Record Duration: Time typically measured in Seconds. Frame rate and resolution dependent.
  • Light Sensitivity: ISO 3,000 (Mono) Using Ssat 12232 (D) standard
  • Warranty: 1 Year
  • Minimum Shutter: 50 μs (microsecond)
  • Special Features: High-G, extremely small and rugged
  • Dynamic Range: 8 bit
  • Budgetary Range: See "Camera Guideline" button in top right of this page
Sensor Options: Color or Mono
Onboard Memory Options:  1GB (for actual record time, see “Spec Sheet” Link)
Models: Only Model in this Series
Other Options Include: None
