High speed digital video cameras for slow motion analysis

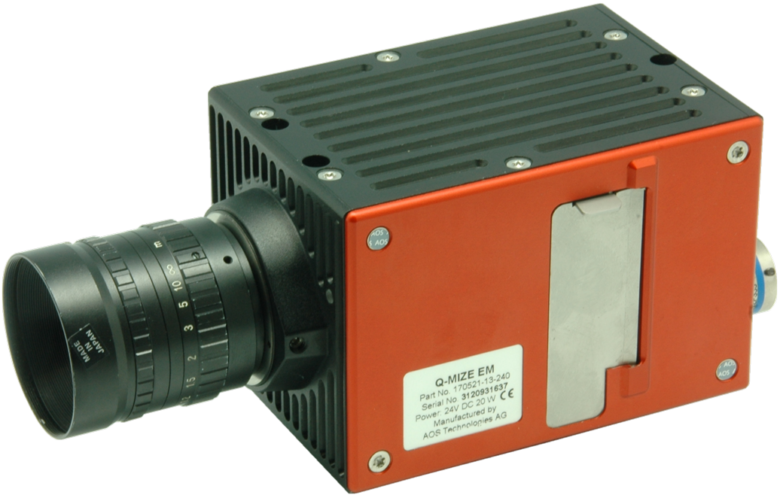

AOS Q-MIZE EM

image description
often used frame rates 500 to 1,500
image description
max resolution at fps 1696 x 1710 @ 500 fps
image description
max fps 100,000

The Q-MIZE EM is often used for airborne store separation testing where very high resolution high speed cameras are necessary. The MIL 810 / MIL 461 tested camera can be found serving duty in many defense forces around the world. Although it is highly customizable (as are most AOS products), this camera is ready to fly today!

  • Sample Record Rates: 1696 x 1710 @ 500 fps; 1360 x 1024 @ 1,000; 1280 x 720 @ 1,500
  • Max Record Duration: Time typically measured in Seconds. Frame rate and resolution dependent.
  • Light Sensitivity: ISO 2,200 (Mono) Using Ssat 12232 (D) standard
  • Warranty: 1 Year
  • Minimum Shutter: 2 μs (microsecond)
  • Special Features: Airborne, MIL-810 & 461, Battery, Customizable
  • Dynamic Range: 8 bit
  • Budgetary Range: See "Camera Guideline" button in top right of this page
Sensor Options: Color or Mono
Onboard Memory Options: 1.3GB, 2.6GB, 5.2GB, or 10.4GB (for actual record time, see “Spec Sheet” Link)
Models: Part of the AOS Q Series (Other models include Q-PRI, Q-MIZE). See Camera Guideline for comparison of models.
Other Options Include: CF Storage, IRIG, Extended Battery, 90/180° Connectors, Flathead, Video Out, others
