Fastec TS5 (Demo Models Available)

image description
often used frame rates 250 to 2,000
image description
max resolution at fps 2560 x 2048 @ 253 fps
image description
max fps 29,090
download spec

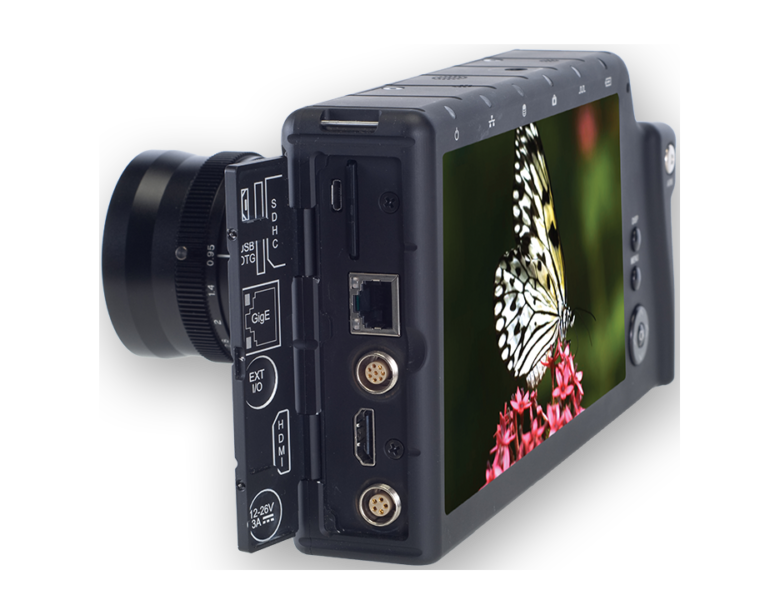

Performance to fit – With four models from SVGA (800 x 600) to QSXGA (2560 x 2048), there is a TS5 that is right for your needs. All models use an advanced 5-Megapixel sensor that produces remarkably clean images at all resolutions and each offers a large internal SSD for long record streaming. Binning and sub-sampling features of the sensor give it great flexibility and sensitivity. With its small form factor, battery operation, large built-in LCD touch screen and intuitive on-screen menu system, the TS5 puts the power of both a traditional high-speed camera and long-record system into the palm of your hand. The TS5 is truly a point-and-shoot high-speed camera solution.

  • Sample Record Rates: 2560 x 2048 @ 253 fps; 1920 x 1080 @ 634 fps; 640 x 480 @ 3,289 fps
  • Max Record Duration: Time typically measured in Minutes. Frame rate and resolution dependent. Can stream recorded images in real time to internal SSD at limited frame rates.
  • Light Sensitivity: ISO 1,600 (Mono) Using Ssat 12232 (D) standard
  • Warranty: 1 Year
  • Minimum Shutter: 3 μs (microsecond)
  • Special Features: Handheld, Battery, Binning, SSD, WiFi
  • Dynamic Range: 12 bit
  • Budgetary Range: See "Camera Guideline" button in top right of this page
Sensor Options: Color or Mono
Onboard Memory Options: 4GB or 8GB Buffer & up to 2TB SSD for Long Record  (for actual record time, see “Spec Sheet” Link)
Models: Part of the Fastec TS Series (Models include TS5-L, TS5-S, TS5-H, TS5-Q, & TS3). See Camera Guideline for comparison of models.
Other Options Include: WiFi, IRIG, F or PL mount, additional battery, external charger
