High speed digital video cameras for slow motion analysis

MCT Streamer Touchscreen

image description
often used frame rates 100 to 1,000
image description
max resolution at fps 2048 x 1088 @ 170 fps
image description
max fps 13,973

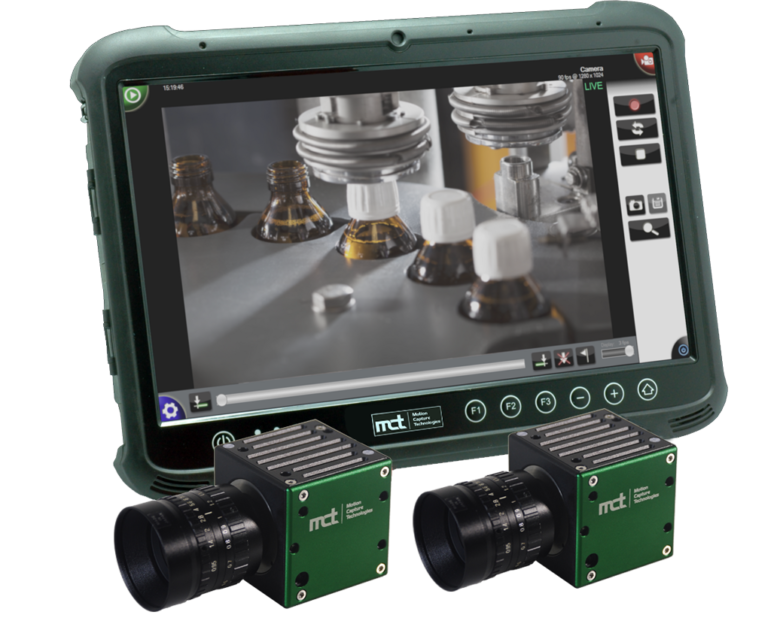

The MCT Streamer Touchscreen combines the compact, efficient, and powerful Streamer Series Camera with a ruggedized custom control tablet. No more hunting around the office for the “right” laptop that has the correct software and enough hard drive space. The Streamer Touchscreen is always ready to go with custom touch software and a super simple interface. Boot up in seconds and record for hours; then download to your USB drive or save on the internal drive. Can support up to 2 cameras.

  • Sample Record Rates: 2048 x 1088 @ 170 fps; 1280 x 720 @ 250; 640 x 480 @ 750
  • Max Record Duration: Time typically measured in Minutes or Hrs. Frame rate and resolution dependent. Streams recorded images in real time to controller hard drive.
  • Light Sensitivity: ISO 3,600 (Mono) Using Ssat 12232 (D) standard
  • Warranty: 1 Year
  • Minimum Shutter: 13 μs (microsecond)
  • Special Features: Ruggedized Tablet Controller
  • Dynamic Range: 8 bit
  • Budgetary Range: See "Camera Guideline" button in top right of this page
Sensor Options: Color or Mono
Onboard Memory Options: from 250GB to 1TB or more (for actual record time, see “Spec Sheet” Link)
Models: Part of the MCT Streamer Series (Other models include 1.0, 1.1, 2.0, & 2.1). See Camera Guideline for comparison of models.
Other Options Include: Near Infrared Sensor
