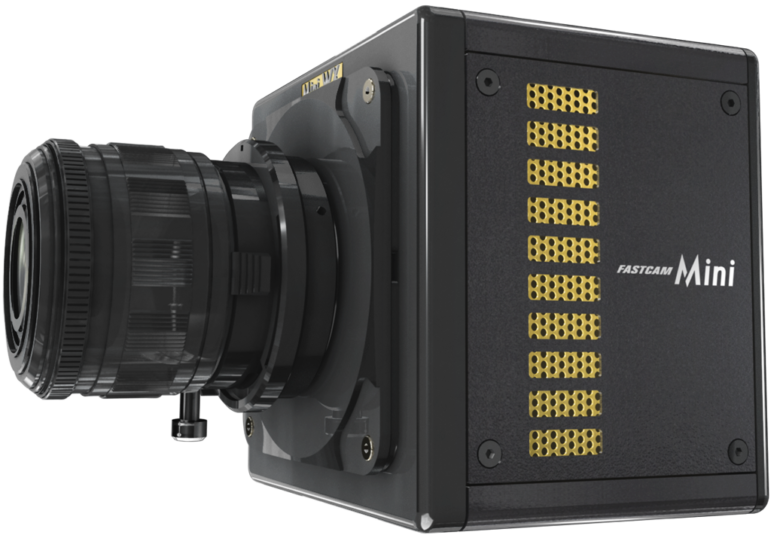

Photron Mini WX50

image description
often used frame rates 750 to 1,500
image description
max resolution at fps 2048 x 2048 @ 750 fps
image description
max fps 67,500
download spec

The Photron Mini WX100 high-speed camera delivers exceptional high resolution imaging performance by providing 2048 x 2048 pixel resolution at 1,080fps (Mini WX50 750fps), 1920 x 1080 pixel full HD resolution at 2,000fps (Mini WX50 1,500fps) and frame rates up to 80,000fps (Mini WX50 67,500fps) at reduced image resolution. It’s unique combination of high resolution imaging performance in a compact, lightweight and rugged package makes the system well positioned for a wide range of industrial and scientific applications. It is ideally suited for biomechanics, microscopy, automotive safety testing and defense applications.

  • Sample Record Rates: 2048 x 2048 @ 750 fps; 2048 x 1536 @ 1,000; 1280 x 1024 @ 2,000
  • Max Record Duration: Time typically measured in Seconds. Frame rate and resolution dependent.
  • Light Sensitivity: ISO 6,400 (Mono) Using Ssat 12232 (D) standard
  • Warranty: 2 Years
  • Minimum Shutter: 2.7 μs (microsecond)
  • Special Features: High-G, Download while record
  • Dynamic Range: 12 bit
  • Budgetary Range: See "Camera Guideline" button in top right of this page
Sensor Options: Color or Mono
Onboard Memory Options: 8GB, 16GB, or 32GB (for actual record time, see “Spec Sheet” Link)
Models: Part of the Photron WX Series (Other models include WX100). See Camera Guideline for comparison of models.
Other Options Include: Standard or High-G batteries & cables.  Various lens adapters.
